Description

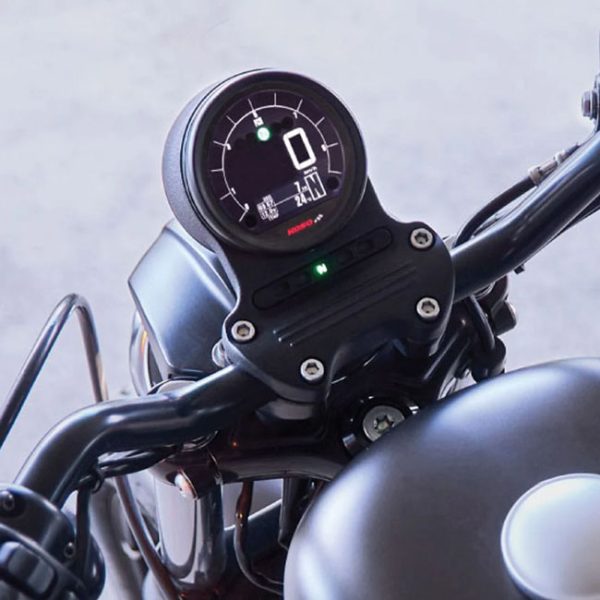

Koso, DL-04D Multifunctional display for HD

For CAN-bus models with a handlebar mounted instrument. Multifunctional speedometer / tachometer for models with a handlebar mounted analog instrument. This gauge is plug & Play and offers much more than great looks. The high-tech backlit LCD screen features functions as speed, odometer, tripmeter, hour meter, fuel level, oil temp, shift light, 6 indicator lights and more. – Speedometer: 0 ~ 225 mph (0 ~ 360 km/h) per 1 mph or km/h – Odometer: 0 ~ 999,999 miles / km. Per 1 mile / km – Tripmeter A/B: 0 to 9,999.9 miles / km. Per 0.1 mile / km – Tachometer: 0 ~ 10,000 rpm – Shift light warning: 2,000 to 10,000 rpm. Adj. per 100 rpm on ≥ value – Tire circumference: 50 to 210%. Adj. per 1% – Engine / oil temperature meter: -40 to 419°F (-40 to 215°C). Per 1 degree – Display backlight brightness: 5 levels. 1-5 (darkest) to 5-5 (brightest) – Overspeed warning: 0 to 225 mph (0 to 360 km/h) – Fuel level: 6 levels. 1 level = 16.67% – Fuel tank volume: OFF / 1.0 to 9.9 US gallons – Clock: 12 H or 24 H format – Gear indicator: Off, N, 1, 2, 3, 4, 5, 6 – Indicator lights: Check engine / ABS / RPM shift light / Security indicator / Cruise control / Low voltage warning – Volt meter: DC 8.0 to 18.0 V. Per 0.1 Volt

Fits: > 11-17 Softail; 12-17 Dyna; 14-22 XL. Models with handlebar mounted gauge (NU)
